F368J

Product Introduction:

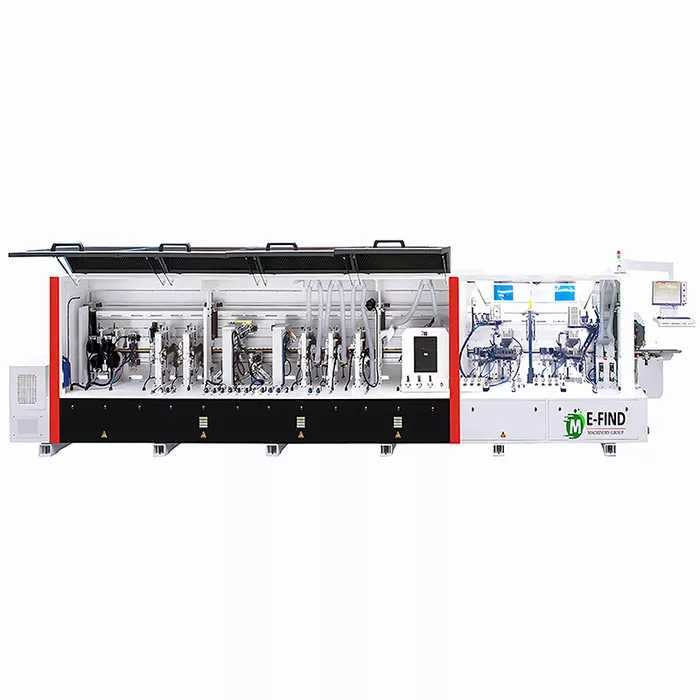

F368JC is a fully automatic high speed   edge   banding   machine   with a maximum   speed of 23m/min. This model   has   complete functions, stable and powerful system, intelligent operation control and high-speed and efficient   production, and is suitable   for mass production   of panel furniture. Using high-quality materials and brand configurations, it   can adapt to high and low temperature   climates and other harsh   environments for   production and operation. It has the characteristics of stable production, low maintenance, and durability.

Operation process:

Separating agent → Premilling → Edge gluing → End cutting → Trimming 1 → Trimming 2 → Scraping → Cleaning agent → Pneumatic polishing

Separating agent By atomizing and spraying before the pre-milling process of the automatic edge banding machine, it can effectively prevent the hot melt glue overflowing during the edge banding process from polluting the board surface, and reduce the workload for subsequent cleaning work.	Touc screen control system 1. Start and stop equipment 2. Function selection 3. Parameter setting 4. Warning notice 5. Other functions	Roller type   Aluminum beam Ensure the stability of high-speed conveying boards and dust is not easy to pollute the conveying surface of the board surface, improve production efficiency and edge sealing quality.
Pre-milling Re-improve the uneven plate or the ripples, burrs or non-vertical phenomena caused by the cutting saw and cutting saw to make the plate sealing surface smooth, so that the edge sealing strip and the plate fit closely, so as to achieve better edge banding effect. No need for manual adjustment, more accurate.	Edge Gluing Press the edge banding tape to improve the bonding effect.	End cutting Ensure that the cut surface is smooth and faster.
Infrared Baking Lamp The heating effect makes the edge banding bond better.	Servo tape feeding High-precision edge feeding, saving edge materials and improving production efficiency.	Trimming (Two groups) Use the high-frequency and high-speed motor structure during edge banding to repair the excess edge banding material on the top and bottom of the edge banding plate, so that the width of the edge banding strip is consistent with the width of the edge banding plate. One-button switching can be realized, without the need for technicians to adjust the knife.
Lubrication system Lubrication, maintain mechanical precision and mechanical life.	Safety limiting device Anti-misplacement board to avoid damage to the machine; Anti-crushing hands to avoid injury to the operator during production.	Scraping Scrape off the corrugated traces produced during the edge banding process to ensure that the edge banding and surrounding parts of the board are smooth and flat.
Flat scraping Remove the excess glue line of the edge banding, make the upper and lower parts of the board smoother and tidy, and improve the quality of the edge banding.	Cleaning agent By atomizing and spraying before the polishing wheel of the automatic edge banding machine, the residual hot melt adhesive and other sundries on the workpiece can be effectively removed.	Polishing Clean the finished board with a cotton buffing wheel, and polish the edge end more smoothly.

Q1. Are your trading company or factory?

A1. We are factory with more than 20000m2 workshop located in Shunde Dist., Foshan, Guangdong, China.

Q2. What machine can you supply?

A2. Our main machines are computer beam saw, edge banding machine, cnc drilling machine, cnc router machine etc.widely used for panel furniture production.

Q3. What is the payment term?
A3. T/T 30% in advance and balance before shipment, LC or by negotiation.

Q4. What is the delivery time?

A4. Normal 380V voltage is 15-30 days, other voltage is 30-45days.

Q5. What is the guarantee?

A5. 12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price.You will also get technical support and service all the lifetime.

Q6. Can you support the pre-sales service before confirm the order?

A6. Yes ,you will get experienced pre-sales engineer to support, not only including machine and auxiliary selection but also electrical ,air, machine layout in factory ,etc.

Q7. What is the after sales services?

A7. you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by online tools. We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost.
